12V Push Button Start Switch Safety Guide: What to Check Before You Touch the Wiring
If you are working with a 12V push button start switch, the useful questions are electrical: what circuit are you controlling, how is it protected, and what factory systems still need to remain active? This guide focuses on those practical checks rather than treating a universal switch as a plug-and-play promise.

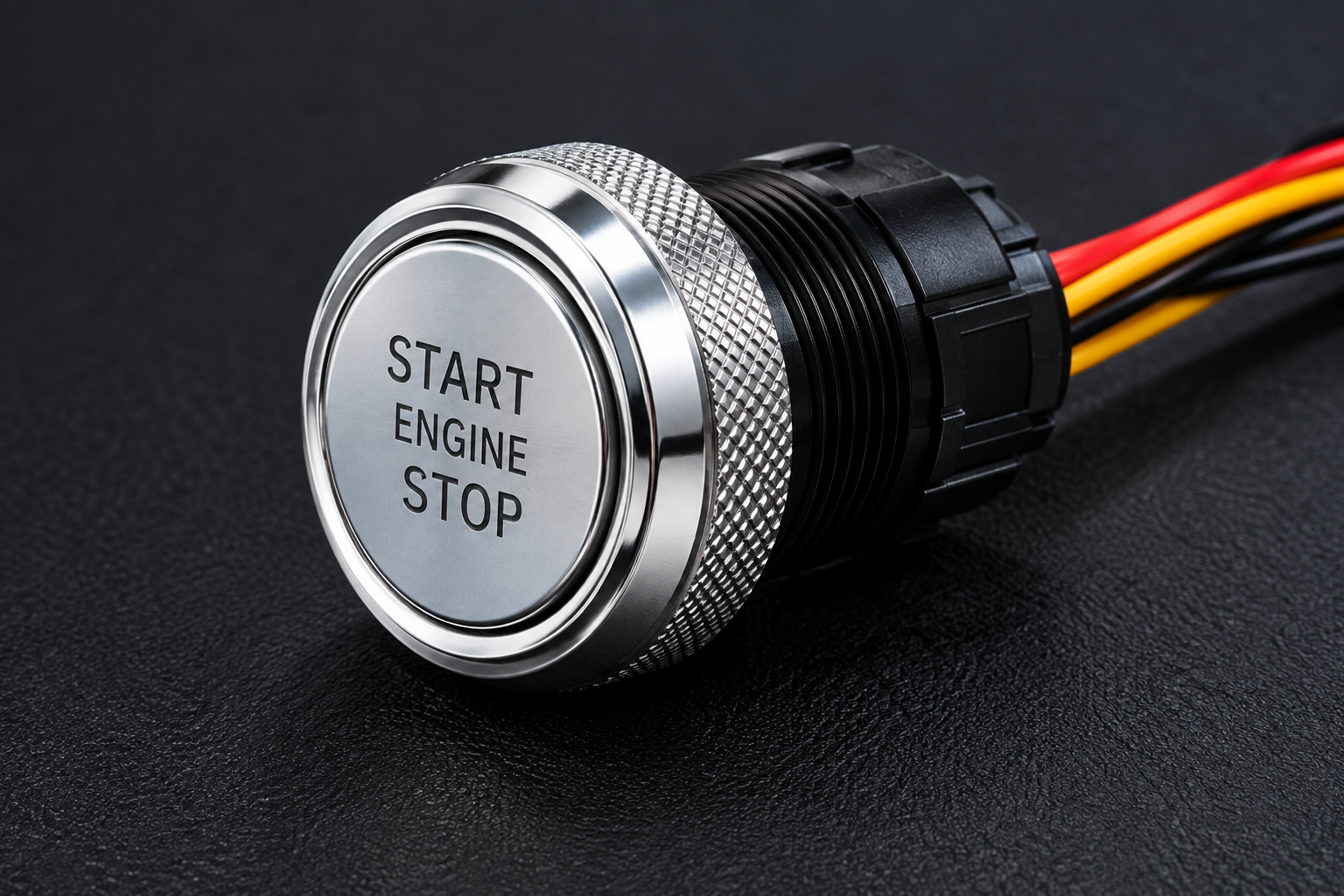

.jpeg)
Disconnecting 12V Power Safely Before Installation
Park securely, select Park or Neutral as appropriate, apply the parking brake and remove the key before opening the electrical system. Follow the vehicle service procedure for battery disconnection, especially when modules require shutdown time.
Treat constant-power wires as live until verified otherwise. Cover the disconnected terminal so it cannot spring back into contact.
Remember that disconnecting the battery can affect radio codes, learned settings and module behavior on some vehicles.
- Verify the vehicle or equipment is a 12V DC application.
- Identify the exact circuit before connecting the harness.
- Check mounting depth as well as visible panel diameter.
- Keep the installation serviceable for future diagnosis.
Avoiding SRS and Airbag Wiring
SRS circuits deserve a hard stop. Yellow connectors, airbag modules, clocksprings and seat-belt pretensioner wiring should not be probed or modified as part of a starter-button installation.
Choose a mounting area away from airbag deployment paths and knee bolsters designed to move during a crash.
If the service information identifies an SRS component behind your chosen panel, move the switch somewhere else.
Safety warning: Disconnect the 12V battery before modifying power wiring. Do not probe or modify SRS/airbag circuits. Keep added wiring fused, preserve neutral-safety or clutch interlocks, and never test-start an engine in an enclosed garage.
Protecting Starter, Ignition and Fuel-System Circuits
Starter circuits can carry substantial current and create heat quickly when undersized or shorted. Added feeds need correct fuse protection, conductor size and relay capacity.
Never test by intentionally shorting wires or jumping unknown terminals. Keep sparks and open electrical work away from fuel vapors and fuel-system service areas.
For marine gasoline applications, follow the appropriate ignition-protection and fuel-vapor safety requirements.
A simple verification routine
- Confirm battery and ground condition.
- Identify each circuit with documentation and a meter.
- Check relay and fuse requirements.
- Make temporary protected connections for testing.
- Verify operation before final trim assembly.
.jpeg)
Fuses, Relays, Wire Gauge and Connection Protection
A fuse protects wiring, so size it to the circuit and conductor rather than choosing the largest value that stops nuisance blowing. Install added fuse protection close to the power source.
Use a relay where the switch should not carry the controlled load directly. Secure relays and fuse holders so vibration cannot fatigue the terminals.
Insulate splices, use abrasion protection through sheet metal, and keep wiring away from heat sources.
Safe First Start and Post-Installation Testing
Before reconnecting the battery, inspect for loose tools, exposed copper and pinched wires. Verify the transmission is in Park/Neutral and nobody is working near belts, fans or the engine bay.
Perform the first crank with the vehicle in a ventilated area—never an enclosed garage. Confirm the starter disengages normally and the engine stops by the intended method.
After several cycles, recheck connections for heat, movement or looseness before reinstalling all trim.
Diagnostic Notes for Older 12V Vehicles
Older vehicles often carry evidence of previous electrical work. Before blaming a new component, inspect aftermarket alarms, remote starters, trailer wiring, audio feeds and old splices near the ignition harness. A connection that looks acceptable at rest can develop enough resistance under load to prevent a relay or starter solenoid from operating correctly.
Voltage-drop testing is especially useful. Measure across a connection while the circuit is operating; a large drop points to resistance in that path. This is more informative than a simple continuity beep, because continuity uses very little current and can make a weak connection appear healthy.
If the starter cranks but the engine does not run, separate the crank problem from the run problem. Check the security indicator, scan for immobilizer or engine-management faults when appropriate, and verify that required ignition feeds remain powered during crank. PATS, Passlock, SKIM, NATS and other immobilizer systems can stop engine operation even when the starter button and relay are functioning normally.
Do not defeat a safety or security circuit just to complete a test. The goal is to understand the original system and integrate the new control without creating an unintended start condition.
Practical Checklist Before You Finish
- No exposed copper or unsupported splices.
- Added power feeds are fused correctly.
- Harness cannot contact pedals, steering parts, sharp edges or hot surfaces.
- Starter disengages immediately after the crank command.
- Factory security and safety interlocks still operate as intended.
- No connector or relay becomes abnormally hot after repeated starts.
