Where Can You Use a 12V Push Button Start Switch? Cars, Work Trucks, Boats and Project Vehicles
If you are working with a 12V push button start switch, the useful questions are electrical: what circuit are you controlling, how is it protected, and what factory systems still need to remain active? This guide focuses on those practical checks rather than treating a universal switch as a plug-and-play promise.

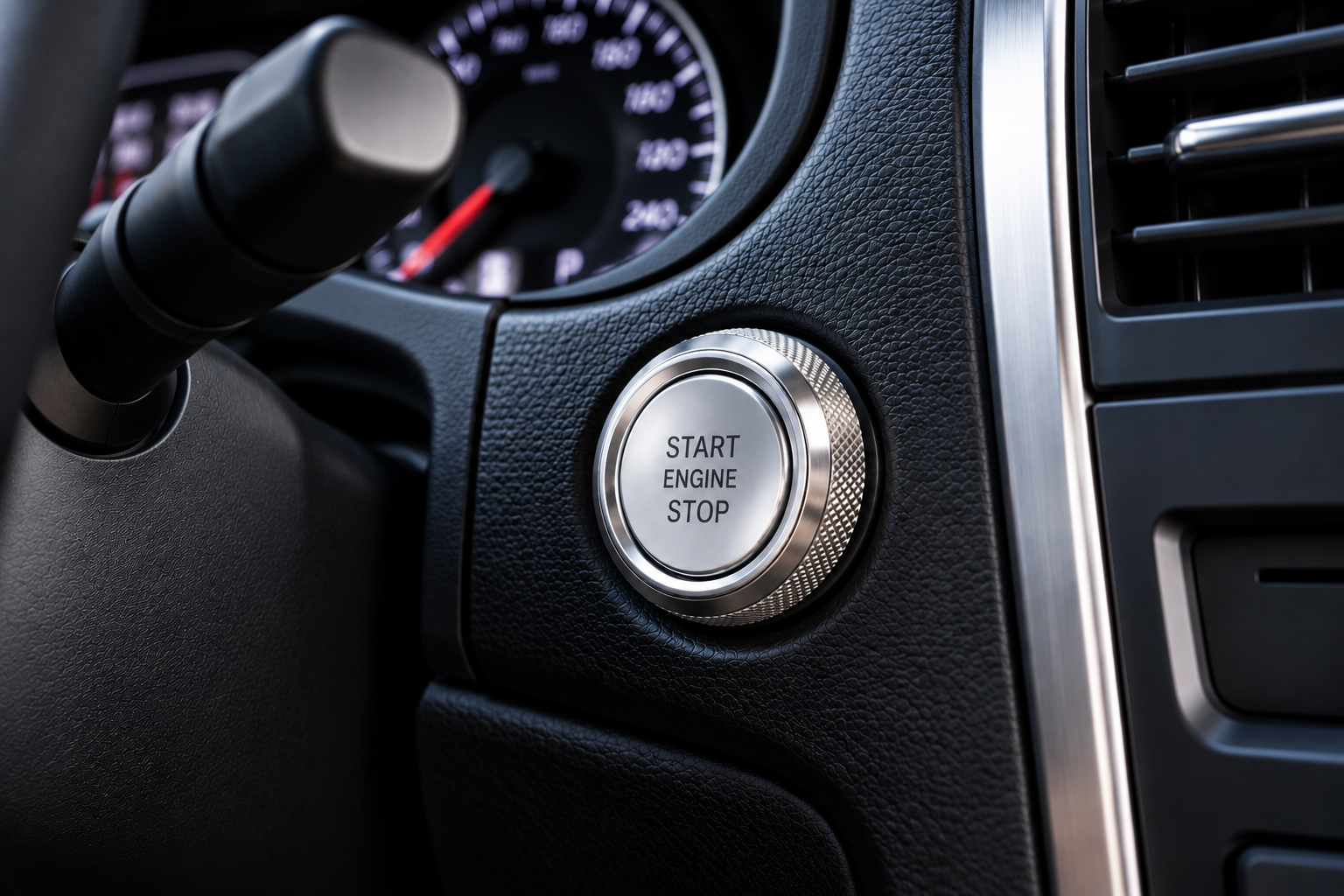

.png)
Older Cars and Classic Vehicle Projects
Older vehicles are common candidates because their dashboards and ignition circuits can be easier to access. A metal push button can replace a worn auxiliary starter control or become part of a custom dashboard.
Do not assume age means no electronics. Many 1990s and 2000s vehicles use immobilizers and electronic starter authorization.
Preserve the original safety interlocks and document any wiring changes for future service.
- Verify the vehicle or equipment is a 12V DC application.
- Identify the exact circuit before connecting the harness.
- Check mounting depth as well as visible panel diameter.
- Keep the installation serviceable for future diagnosis.

Work Trucks and Utility Vehicle Installations
Work vehicles often accumulate switches, radios, lighting and other aftermarket wiring. Before adding another circuit, inspect the existing power distribution and identify whether previous modifications are properly fused.
Mount the button where it is reachable but protected from accidental presses and cargo impact. Route wiring away from steering shafts, pedals and sharp brackets.
A relay-controlled starter command is often preferable to asking a dashboard control to carry more current than intended.
Safety warning: Disconnect the 12V battery before modifying power wiring. Do not probe or modify SRS/airbag circuits. Keep added wiring fused, preserve neutral-safety or clutch interlocks, and never test-start an engine in an enclosed garage.
Boats and Marine 12V Electrical Systems
A boat may use a 12V system, but the environment changes the installation rules. Moisture, salt, vibration and fuel vapor demand more attention to terminals, corrosion protection and component location.
Use marine-appropriate practices and keep connections protected. Do not place electrical modifications where a spark could create a fuel-vapor hazard.
Confirm the boat manufacturer or applicable marine standards before modifying ignition or starter circuits.
A simple verification routine
- Confirm battery and ground condition.
- Identify each circuit with documentation and a meter.
- Check relay and fuse requirements.
- Make temporary protected connections for testing.
- Verify operation before final trim assembly.
.jpeg)
Custom Dashboards and Project Vehicle Applications
Custom panels give you freedom to position the button cleanly and provide service access behind it. Plan the hole, connector clearance and wire route before finishing the panel.
Label the harness and leave enough service loop to remove the panel later without pulling terminals.
For a project vehicle with a separate ignition controller, the push button can serve as a simple human interface while the controller handles the logic.

Environments Where a Universal Push Button May Not Be Appropriate
Avoid treating a standalone switch as a solution for a modern networked ignition system you do not understand. Vehicles with integrated steering locks, encrypted key authorization or complex body-control logic may require specialized interfaces.
Likewise, avoid exposed wet locations unless the complete installation is designed for that environment.
A universal switch is most useful when the electrical role is clearly defined and the surrounding system is understood.
Diagnostic Notes for Older 12V Vehicles
Older vehicles often carry evidence of previous electrical work. Before blaming a new component, inspect aftermarket alarms, remote starters, trailer wiring, audio feeds and old splices near the ignition harness. A connection that looks acceptable at rest can develop enough resistance under load to prevent a relay or starter solenoid from operating correctly.
Voltage-drop testing is especially useful. Measure across a connection while the circuit is operating; a large drop points to resistance in that path. This is more informative than a simple continuity beep, because continuity uses very little current and can make a weak connection appear healthy.
If the starter cranks but the engine does not run, separate the crank problem from the run problem. Check the security indicator, scan for immobilizer or engine-management faults when appropriate, and verify that required ignition feeds remain powered during crank. PATS, Passlock, SKIM, NATS and other immobilizer systems can stop engine operation even when the starter button and relay are functioning normally.
Do not defeat a safety or security circuit just to complete a test. The goal is to understand the original system and integrate the new control without creating an unintended start condition.
Practical Checklist Before You Finish
- No exposed copper or unsupported splices.
- Added power feeds are fused correctly.
- Harness cannot contact pedals, steering parts, sharp edges or hot surfaces.
- Starter disengages immediately after the crank command.
- Factory security and safety interlocks still operate as intended.
- No connector or relay becomes abnormally hot after repeated starts.
.jpeg)
